Material: Surface hot-dip galvanized
Function: Brooding chicken breeding
Specifications: 1200×1200×410mm
Number of layers: 4 layers
Breeding capacity: 192 chickens
Area per chicken: 300cm²
Certification: ISO9001
Production capacity: 300 sets/day
Service life: 20 years
Sales method: Wholesale
Customization: Accept customized products Minimum order
quantity : 50 sets
Origin: China
With fast, professional, efficient and high-quality service, breeding becomes smarter and simpler.
This product is a chicken cage designed for chicks. The brooding and rearing period is reasonably designed in one cage, ranging from one day to 7-13 weeks, laying the foundation for the subsequent laying hen cage rearing period; the brooding and rearing period is the most critical period in the life of a chicken. During this stage, the chicks need to be carefully raised to improve the uniformity of their weight and reduce mortality. The brooding cages and related supporting auxiliary equipment provided by ZUMOO can improve the growth environment of chicks and obtain ideal economic benefits.
Our company can provide customized solution design, from chicken house design, cage configuration, ventilation solutions, etc.
1.Professional poultry house design
you just need to tell us the raising quantity, our design team will recommend you one
suitable model and design the house size for you.
2. Offering one-site service
including project design, quality control, installation, after-sale service and farming guidance.
3.Lifelong agricultural consultant
After-sale service and farming guidance Technical training and ful customer support is
provided for all clients, enabling them to get the most out of their automated poultry farm.

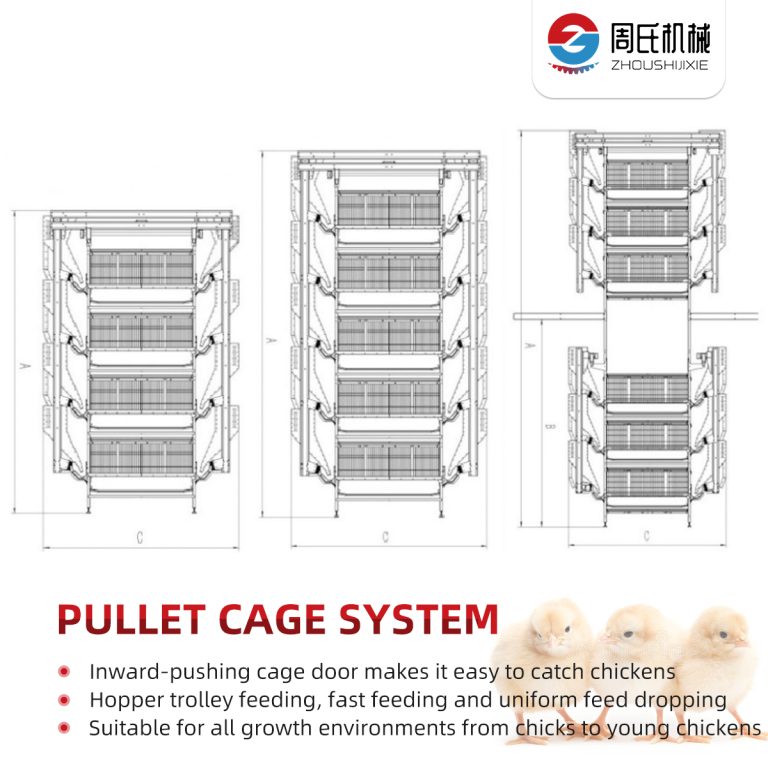

| H-type young chicken cage (brooding cage) stacking cage parameters | ||||||||
| model | Cell length | Cell Depth | Cell height | Cage size (mm) | CEILING HEIGHT |
Per unit /Number of cages |
Number of layers |
Number of chickens per unit/cage/group |
| ZSYC-1200-4 | 600 | 600 | 420 | 1200*1200*420 | 700 | 4/4 | 4 | 11/44/176 |
| ZSYC-1200-5 | 600 | 600 | 420 | 1200*1200*420 | 700 | 4/5 | 5 | 11/44/220 |
| ZSYC-1200-6 | 600 | 600 | 420 | 1200*1200*420 | 700 | 4/6 | 6 | 11/44/264 |
| ZSYC-1200-8 | 600 | 600 | 420 | 1200*1200*420 | 700 | 4/8 | 8 | 11/44/352 |
| Note: A grille platform will be added for floors 6 and above. | ||||||||
1. Brooding cage:
It is made of galvanized adjusting plate and can be raised and lowered as a whole.
The cage is standard 1.2*1.2 meters, with a partition in the middle and an encrypted bottom net.
The brooding and rearing periods can be reasonably raised in one cage.

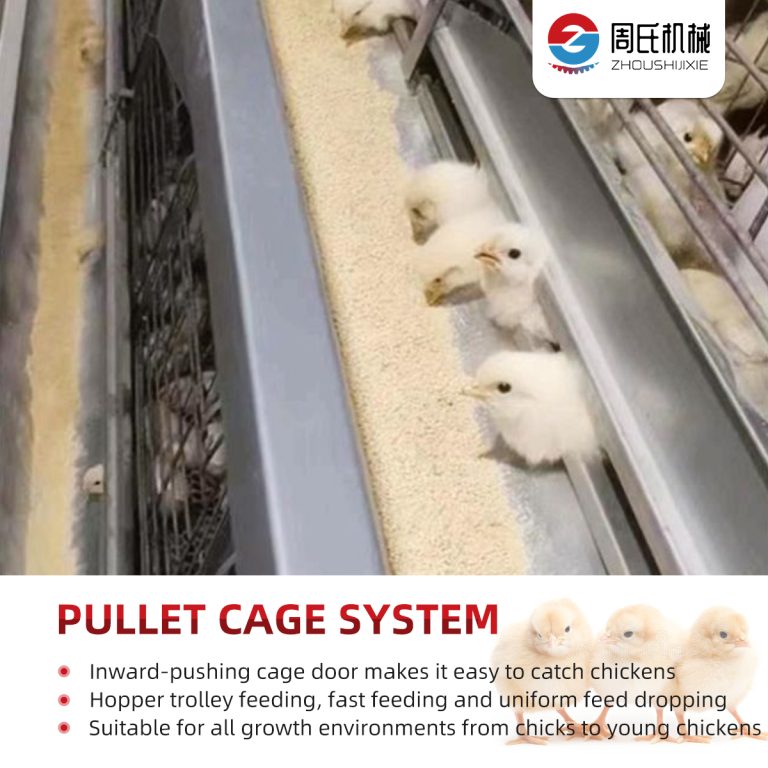

2. Feeding trough:
Made of standard 275g hot-dip galvanized sheet with a thickness of 1.0mm.
The galvanized trough can be stepped on and operated, making it easy to observe the
status of the chickens, observe the chicken position and do epidemic prevention.
3. Feeding:
Each row of dragon houses is equipped with one feeding equipment. The equipment is
reciprocally fed by operating the control cabinet.
Each layer of the feeder is equipped with a leveler, which can adjust the amount of material.

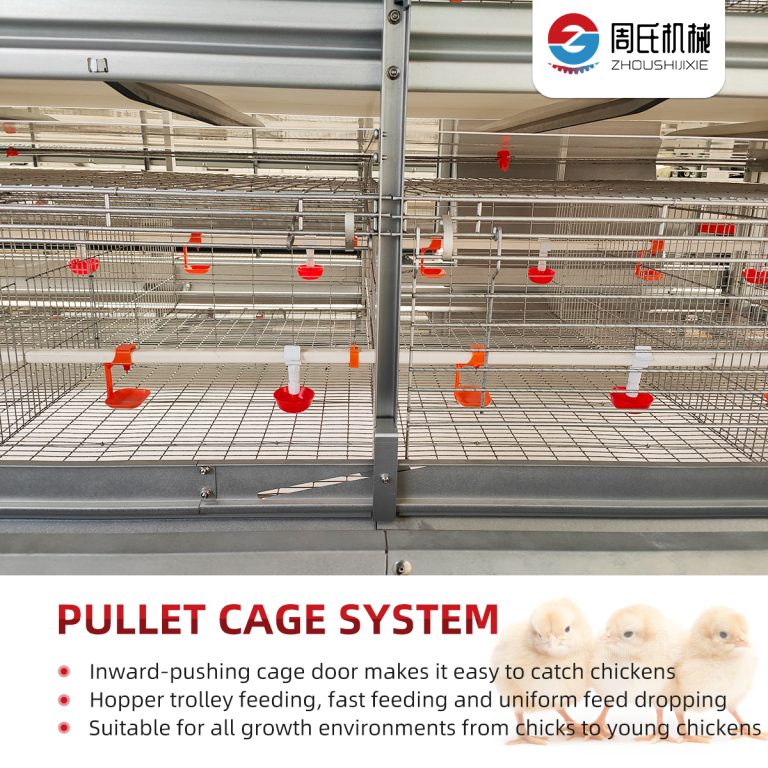

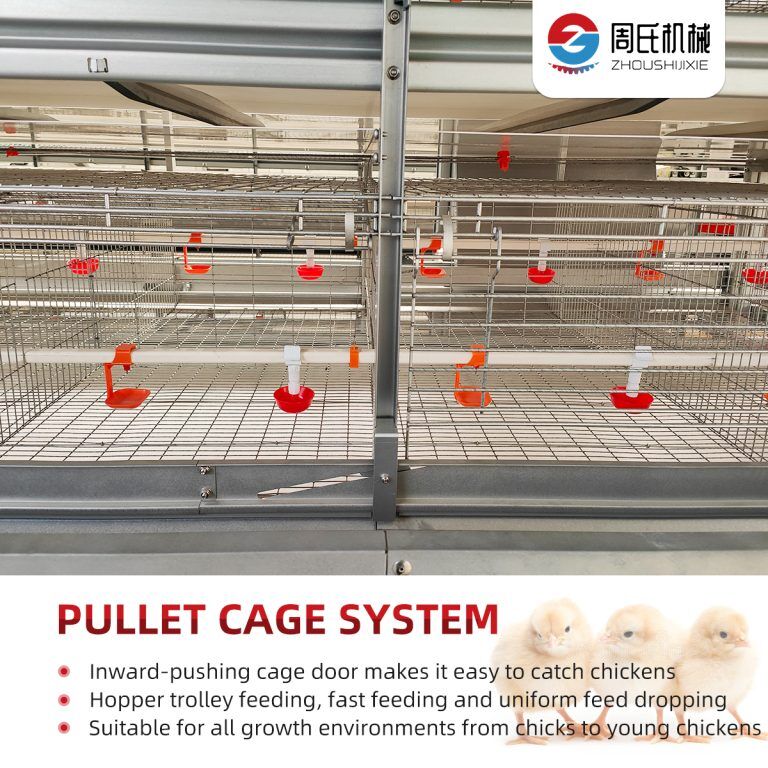

4. Water line:
Each water line can be adjusted up and down to meet the problem of different drinking
heights for chickens of different growth sizes in different cages.
5. Lighting:
Use 48-volt LED lighting, which is waterproof and safer, and the illumination is more uniform.
6.Manure cleaning machine:
Linked with the manure cleaning belt under each cage, the equipment automatically cleans
the manure outdoors by operating the control cabinet. Can be turned on or off at the same time.
7. Environmental controller and ventilation equipment:
including computer controller, negative pressure fan, water curtain, guide (wind) board,
side wind window and other linkage equipment.
The selection and use of young chicken equipment should be determined based on the actual
situation and breeding requirements. If necessary, it is recommended to consult our company’s
professionals to provide a design plan.
1. The cage is assembled and made of 275g hot-dip galvanized plate. It is easy and quick to install, corrosion-resistant, strong and stable.
2. The mesh is welded with 275g hot-dip galvanized wire or galvanized aluminum alloy wire. It has good corrosion resistance, high strength, good elasticity and long service life, at least 20 years.
3. Multiple layers can be stacked. It saves floor space and makes more efficient use of space. The breeding volume is larger under the existing area. Each layer has the same function, and can be used for brooding and feeding, saving costs.
4. The chickens have ample feeding space and grow evenly.
5. It can be equipped with the Internet of Things system to detect environmental information, and cooperate with the computer controller to control the negative pressure fan, water curtain, guide (wind) plate, side wind window and other linkage equipment to create a good living environment.
1. Each water line can be adjusted up and down to meet the different drinking water heights of chickens of different sizes in different cages; a water cup is provided under the water line to prevent water from dripping onto the manure belt, causing air pollution and making it difficult to clean up the manure.
2. The bottom net is installed on the tensioning wire, with strong bearing capacity, good elasticity and dense design.
3. The sliding cage door is simple and reliable. The cage door is wide and practical, making it more convenient to catch chickens and prevent diseases. It is equipped with a hot-dip galvanized feed trough with good load-bearing capacity and can be stepped on, making it easier to purchase and observe.
4. The feed trough adopts seamless plug-in, which makes the feeder run more smoothly, avoiding feed waste and saving costs.
5. The cage door adopts an integrated chicken blocking plate, which can be raised and lowered in proportion to the front and back, saving manpower and making the operation convenient and quick.
6. The feces at the bottom of each cage can be transported to the outside by the host computer once a day, which can reduce the pollution of indoor air by feces, save manpower and facilitate operation.
7. The feeder control mode is manual plus remote control, which is more convenient.
8. The height of the brooding cage is 700mm, with sufficient spacing between the upper and lower parts, which is conducive to air circulation and better ventilation.
Check out more products you are interested in and contact us to get answers
