Ground Feeding Pipeline Drinking Water Equipment

Poultry Drinking System Description

Ground farming in chicken farms includes: feed line, drinking water system, height adjustment system, cooling system, ventilation system, lighting system and environmental control system.

 Poultry drinking water system features:

Water Line Front-end System: This system is equipped with filters and water meters to accurately control and maintain the drinking water system.

Pressure Regulator: The pressure regulator maintains 2 kg of water pressure to ensure optimal performance.

Main water supply system: This system uses 22mm PVC pipe as the main water supply, providing long-lasting and efficient water flow.

Nipple Drinking System: Each unit includes 12 nipple drip cups, allowing multiple birds to drink at the same time while minimizing waste.

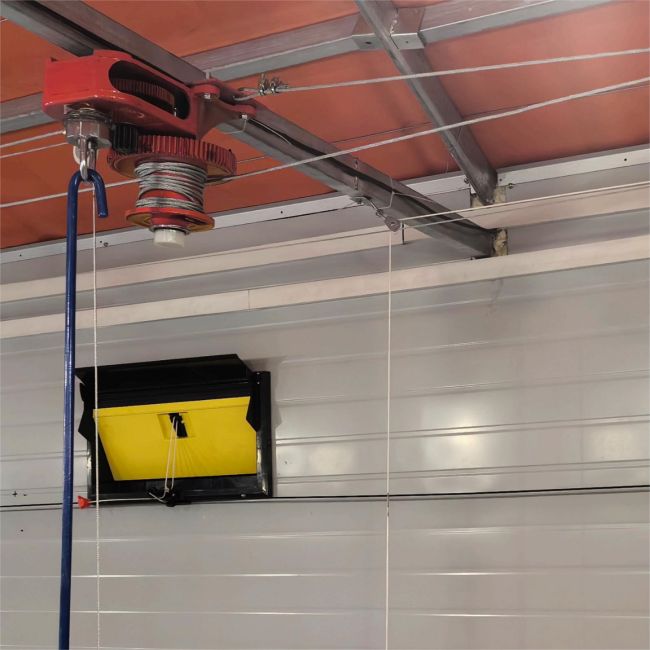

Winch: Equipped with a 1500LB winch to facilitate system installation and adjustment.

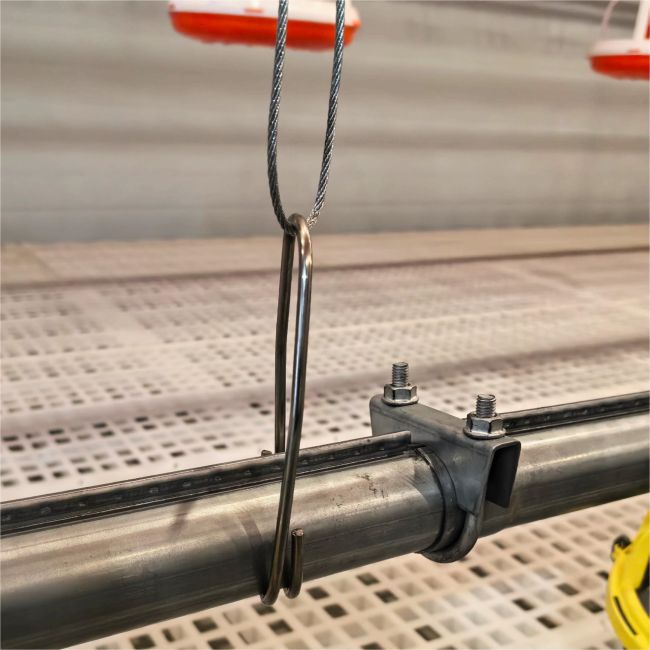

Suspension system: The suspension system is spaced 3m apart to provide stable support for the drinking water system.

Water level display tube: The system is equipped with a water level display tube, which can easily monitor and maintain the water level.

Anti-roosting system: This system is designed to prevent birds from roosting on the drinking water system, ensuring cleanliness and hygiene.
