Material: Surface hot-dip galvanizing
Function: Brooding Material: Surface hot-dip galvanizing
Function: Brooding Chicken farm
specifications: 1200×1200×410mm
Number of layers: 4 layers
Breeding capacity: 192 chickens
Area per chicken: 300cm²
Certification: ISO9001
Production capacity : 300 sets/day Service life
: 20 years
Sales method: Wholesale
Customization: Accept customized products Minimum order
quantity: 50 sets
Origin: China Brooding farm
specifications: 1200×1200×410mm
Number of layers: 4 layers
Breeding capacity: 192
chickens Area per chicken: 300cm²
Certification: ISO9001
Production capacity: 300 sets/day
Service life: 20 years
Sales method: Wholesale
Customization: Accept customized products
Minimum order quantity : 50 sets
Origin: China
With fast, professional, efficient and high-quality service, breeding becomes smarter and simpler.
1.Professional poultry house design
you just need to tell us the raising quantity, our design team will recommend you one
suitable model and design the house size for you.
2. Offering one-site service
including project design, quality control, installation, after-sale service and farming guidance.
3.Lifelong agricultural consultant
After-sale service and farming guidance Technical training and ful customer support is
provided for all clients, enabling them to get the most out of their automated poultry farm.
| H-type young chicken cage (brooding cage) stacking cage parameters | ||||||||
| model | Cell length | Cell Depth | Cell height | Cage size (mm) | CEILING HEIGHT |
Per unit /Number of cages |
Number of layers |
Number of chickens per unit/cage/group |
| ZSYC-1200-4 | 600 | 600 | 420 | 1200*1200*420 | 700 | 4/4 | 4 | 11/44/176 |
| ZSYC-1200-5 | 600 | 600 | 420 | 1200*1200*420 | 700 | 4/5 | 5 | 11/44/220 |
| ZSYC-1200-6 | 600 | 600 | 420 | 1200*1200*420 | 700 | 4/6 | 6 | 11/44/264 |
| ZSYC-1200-8 | 600 | 600 | 420 | 1200*1200*420 | 700 | 4/8 | 8 | 11/44/352 |
| Note: A grille platform will be added for floors 6 and above. | ||||||||

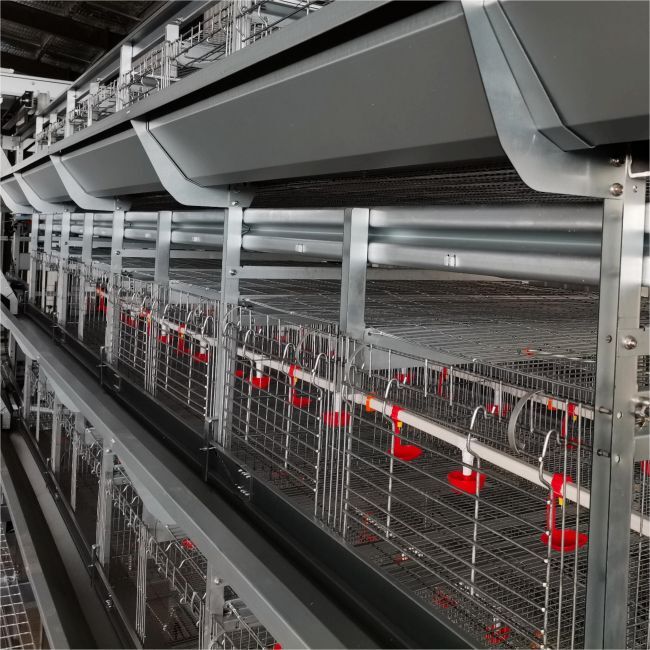

1. Brooding cage:
It is made of galvanized adjusting plate and can be raised and lowered as a whole.
The cage is standard 1.2*1.2 meters, with a partition in the middle and an encrypted bottom net.
The brooding and rearing periods can be reasonably raised in one cage.

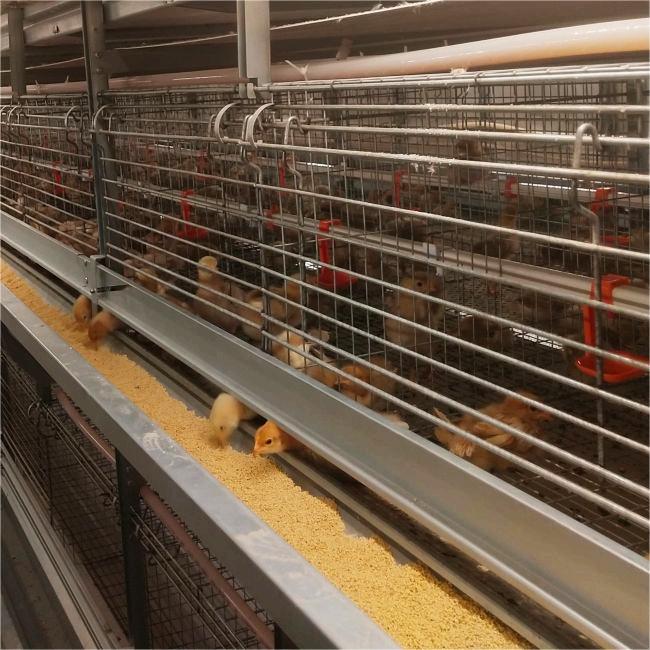

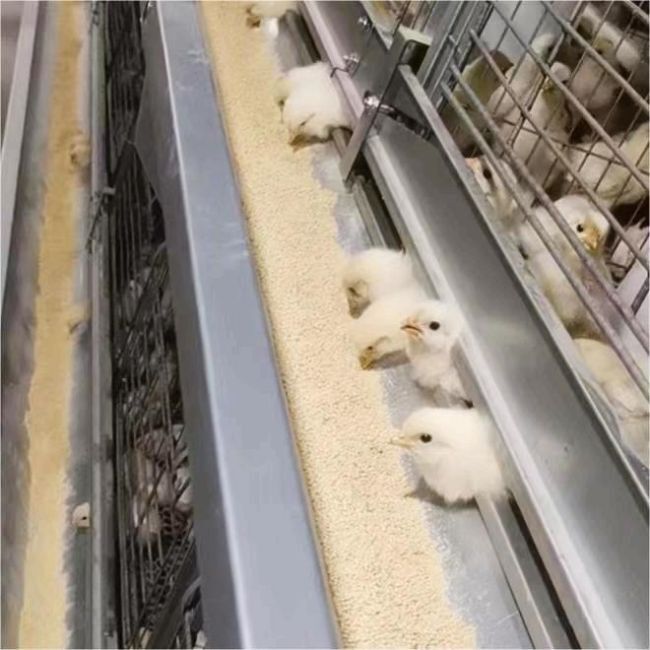

2. Feeding trough:
Made of standard 275g hot-dip galvanized sheet with a thickness of 1.0mm.
The galvanized trough can be stepped on and operated, making it easy to observe the
status of the chickens, observe the chicken position and do epidemic prevention.
3. Feeding:
Each row of dragon houses is equipped with one feeding equipment. The equipment is
reciprocally fed by operating the control cabinet.
Each layer of the feeder is equipped with a leveler, which can adjust the amount of material.
4. Water line:
Each water line can be adjusted up and down to meet the problem of different drinking
heights for chickens of different growth sizes in different cages.
5. Lighting:
Use 48-volt LED lighting, which is waterproof and safer, and the illumination is more uniform.
6.Manure cleaning machine:
Linked with the manure cleaning belt under each cage, the equipment automatically cleans
the manure outdoors by operating the control cabinet. Can be turned on or off at the same time.
7. Environmental controller and ventilation equipment:
including computer controller, negative pressure fan, water curtain, guide (wind) board,
side wind window and other linkage equipment.
The selection and use of young chicken equipment should be determined based on the actual
situation and breeding requirements. If necessary, it is recommended to consult our company’s
professionals to provide a design plan.

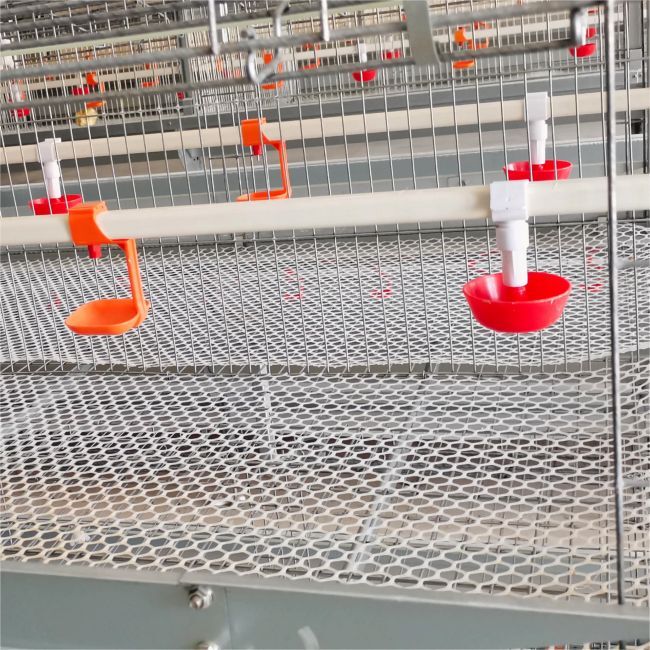

1. A water cup is provided below the water line to prevent water from dripping into the manure belt.
2. The bottom net is installed on the tensioning wire and has great elasticity.

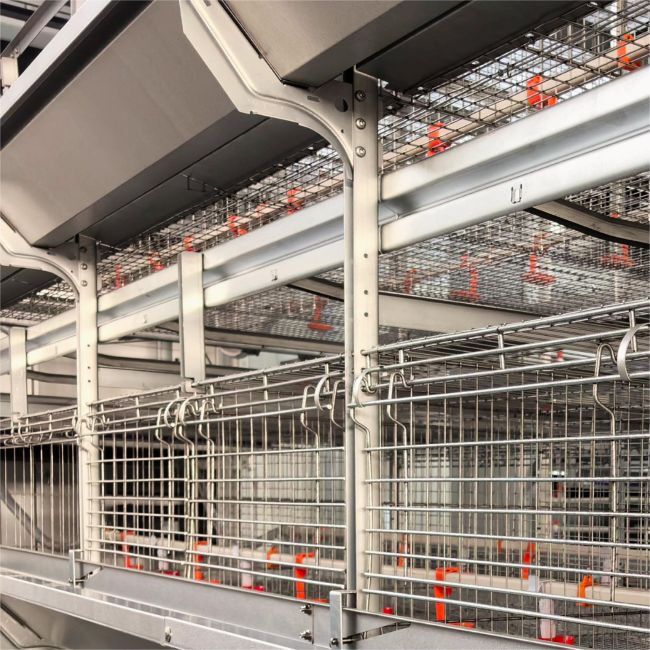

3. The push-in cage door is simple and reliable. The cage door is wide and practical, making it easy to catch chickens.
4. The feed trough is seamlessly connected to avoid feed waste.
5. Integrated chicken guard, easy and quick to operate
1. Assembled, easy and quick installation, reducing surface galvanizing damage, strong and stable
2. Excellent corrosion resistance and long service life, at least 20 years
3. Each layer has the same function, and can be used for both brooding and feeding, saving costs.
4. The chickens have a wide feeding space and grow evenly
5. Large breeding volume, centralized management, saving labor costs
6. Can be equipped with Internet of Things system to detect environmental information
1. Intermediate cage system,
2. Automatic feces cleaning system,
3. Automatic water supply system,
4. Automatic feeding system,
5. Automatic ventilation system,
6. Environmental control system
7. Lighting system,
8. Disinfection system,
9. Heating system,
10. Backup power generation system, etc.
Young chicken equipment refers to the equipment used to raise young chickens, including brooding cages, feeding troughs, water lines, manure cleaners, feeders, lighting, environmental control, etc.
