Material: Surface hot dip galvanized
With fast, professional, efficient and high-quality service, breeding becomes smarter and simpler.
Material: Surface hot dip galvanized

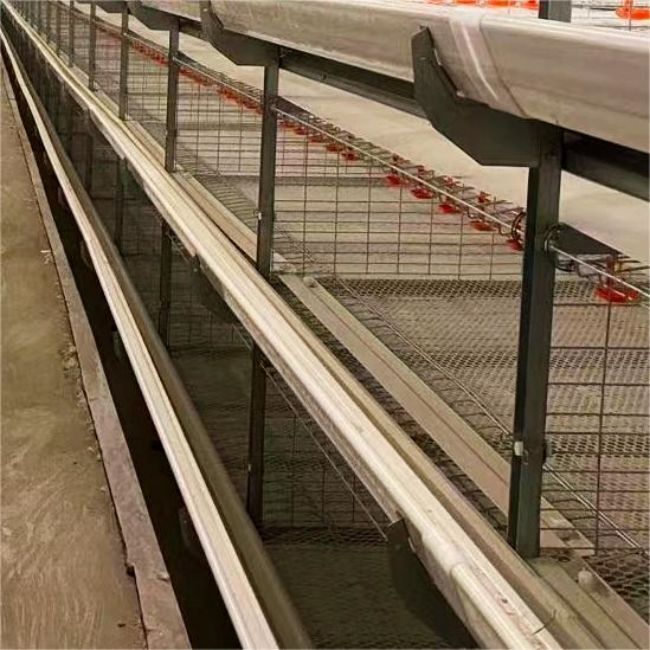

Automatic Broiler Farm Equipment
We design and supply automatic broiler farm equipment, starting from the first day of the chick birth,
and throughout the entire growth cycle. The main equipment includes automatic automatic drinker cup,
poultry feeder system, environmental control systems, lighting systems, manure cleaners, etc.
| LAYERED BROILER EQUIPMENT | ||||||
| model | Cell length | Cell depth | Cell height | Cage size(mm) | Number of cage layers |
Total amount of breeding |
| ZSRJ-1-1250-3 | 1250 | 1000 | 450 | 1250~1000~450 | 3 | 75 |
| ZSRJ-1-1250-4 | 1250 | 1000 | 450 | 1250~1000~450 | 4 | 100 |
| ZSRJ-1-1400-3 | 1400 | 1000 | 450 | 1250~1000~450 | 3 | 84 |
| ZSRJ-1-1400-4 | 1400 | 1000 | 450 | 1250~1000~450 | 4 | 112 |
| ZSRJ-2×1400-3 | 1400 | 1400 | 450 | 1250~1000~450 | 3 | 117 |
| ZSRJ-2×1400-7 | 1400 | 1400 | 450 | 1250~1000~450 | 4 | 156 |
| Layer description: Grid platforms will be added to floors 6 and above; The feeding methods are divided into two types: crane feeding and chain feeding |
||||||
Cage size: perfectly fitted to match the number of birds (raising density: 50kg/㎡).
Surface treatment: hot galvanized with uniform 275g zinc coating, good anti-corrosion quality.
Silo: weighing device is included for daily records offeed consumption. Pan feeding: height is
adjustable to feed chickens at different ages.
This mechanism guarantees a uniform distribution offeed over the whole system.

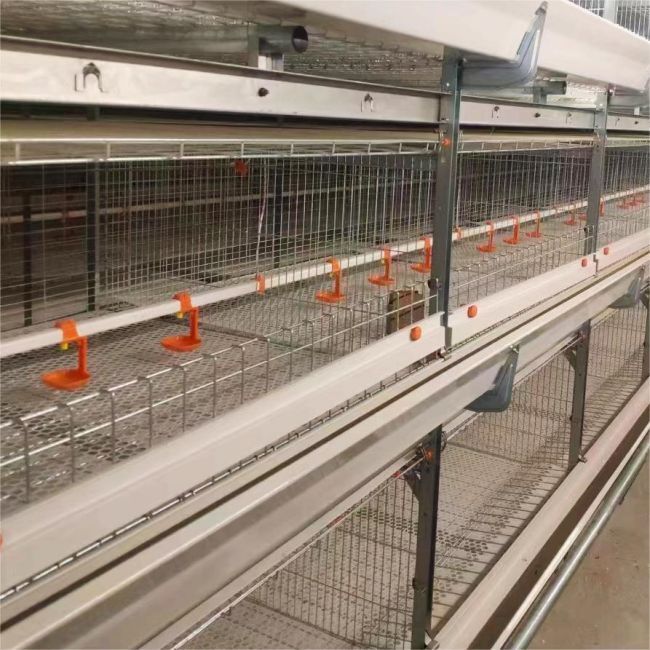

The lifting system of each waterer allows the chickens to drink water at the correct height.
A water supply pipe is placed in each cage and equipped with a drinker. 360° nipple water supply.
Dosers, filters and pressure gauges are supplied.
Linked with the manure cleaning belt under each cage, the equipment automatically cleans the
manage outdoors by operating the control cabinet. Can be turned on or off at the same time.
Q1: I am interested in your poultry equipment.
What is the best price of each unit?
A1: Please try to inform us the basic information as below for our reference, so that we recommend the
suitable option and quote the exact price to you accordingly:
(a) What is the dimension L*W*H of your chicken house? Price has direct relationship with the dimension,
because some parts are quoted by length, some by lines.
(b) How many birds will you keep?
(c)Will you feed broiler or layer?
Q2: My chicken house hasn’t been built, can you give us some advice?
A2: OK. Please proceed building as your plan.
If you have enough ground, we can advise house dimension according to your preference.
Q3: This is my first time for importing, can you ship
the goods to my address?
A3: No problem. We can send our products to the place you want.
Q4: I worry about the installation of poultry equipment,
can you help me?
A4: Yes, we can. We will send brochure and video for your reference for free.
Also we can share instruction on line; Overseas installation team is available, but it will charge.
Q5: I plan to be retailer of poultry farming equipment at
at the same time, can you give me some support?
A5: Yes, we can. We will give our agents technical support for free. Also discount price according to the quantity.
Specifications: 1250mm long*1000mm deep*450mm high; 1250mm long*800mm deep*450mm high;
1400mm long*1000mm deep*450mm high; 1400mm long*800mm deep*450mm high;
1400mm long*1200mm deep*450mm high; 1400mm long*1400mm deep*450mm high;
1200mm long * 1500mm deep * 500mm high (feeding tray and line feeding);
1. The cage frame is made of hot-dip galvanized steel plate, and the surface is galvanized at 275g/m².
2. The cage mesh is welded with 275g hot-dip galvanized wire; specifications include: cage length 1000-1500mm optional; cage depth 700-1500mm optional; cage height 420-450mm optional.

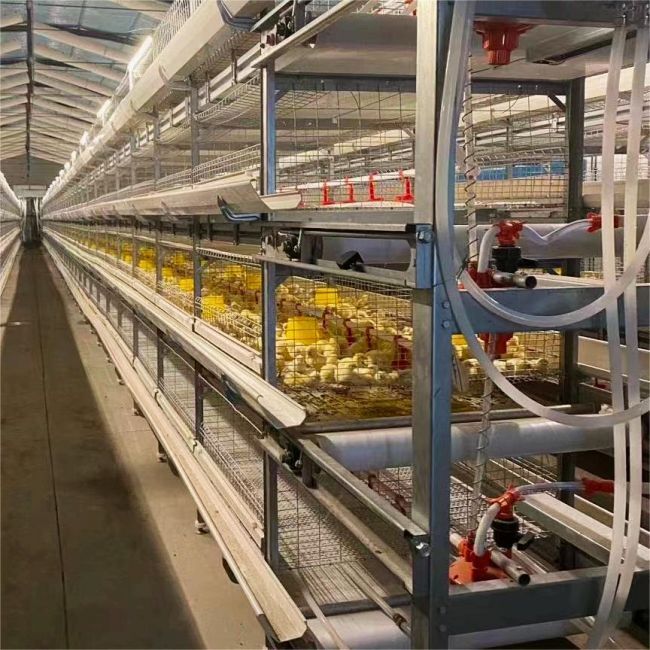

Stacked broiler cage equipment can be stacked in 3 to 4 layers. The chicken house is generally designed to have a width of 16 to 18 meters and a length of 70 to 100 meters. Note the water height. 3-layer stacked cages generally have a net height of 3 meters under the beam. 4-layer stacking The cage generally has a net height of 3.5 meters under the beam; taking white-feathered broilers as an example, 25,000 to 60,000 broiler chickens can be raised. In a limited area, the feeding capacity is greatly increased. It saves feed, reduces labor and improves the economic benefits of breeding.
The house design of stacked broiler cages generally adopts a closed design, and the environmental controller can be effectively used to automatically adjust the temperature, humidity, and ventilation in the chicken house.
The broilers raised in cascading broiler cages are raised in layers, so the breeding volume can be adjusted according to the actual situation. Since the caged breeding clusters do not cluster with each other, it is more convenient to manage and observe the health status of the poultry.
Feces can be processed centrally and cleaned once a day. It is controlled by the host motor, which is convenient and quick, and saves manpower.
