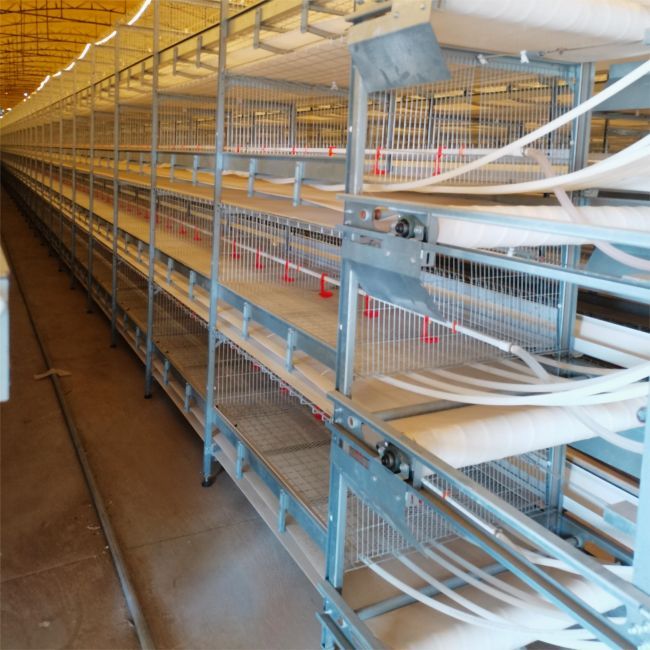

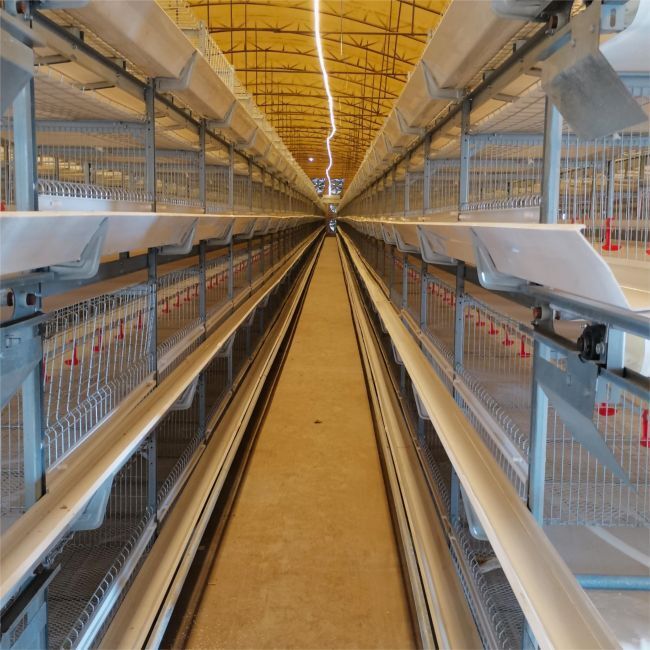

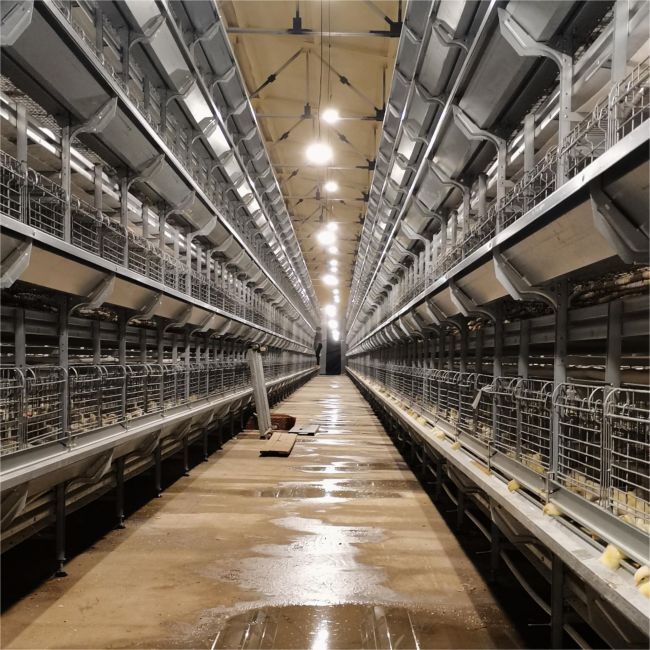

Automated Three-dimensional Broiler Cage System

Material:  1. The cage frame is made of hot-dip galvanized steel plate with a surface galvanizing amount of 275g/m².

2. The cage net is welded with 275g hot-dip galvanized wire; the specifications are: cage length 1000-1500mm optional; cage depth 700-1500mm optional; cage height 420-450mm optional.

3. The feeding trough is a white PVC trough specially used for broilers; the specifications are: 5-9-13, 3.75 meters/root, 4.2 meters/root.

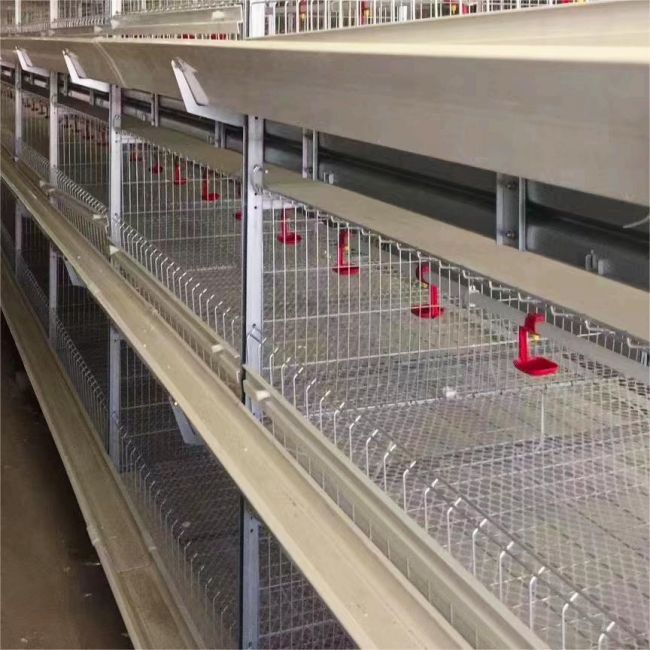

4. Drinking water line: white water line. Specifications of square tubes for broilers: 22*22mm, 3.75m/piece, 4.2m/piece; each cage is equipped with 3-4 nipple drinkers, hanging cups, and steel wire water lines.

Advantages:

1. High degree of automation: automatic feeding, drinking water, manure cleaning, wet curtain cooling, centralized management, automatic control, saving energy, improving labor productivity, reducing artificial breeding costs, and greatly improving farmers’ breeding efficiency.

2. Convenient for chicken epidemic prevention: Chickens do not come into contact with feces, which allows them to grow healthier, provides a clean and comfortable growth environment for them, and greatly advances the time of meat production.

3. Save space and increase breeding density: Our company stacks 3 to 4 layers of cages, and the cage density is more than 3 times higher than the flat density. Sturdy and durable: The main structure of the full set of cage broiler equipment is made of hot-dip galvanized material, which is corrosion-resistant and aging-resistant, and has a service life of 15 to 20 years.

4. Save breeding feed: Cage chickens can save a lot of breeding feed. Cage chickens have less exercise, less energy consumption, and less material waste.

5. Broiler cage equipment does not require the laying of litter, which can save litter costs, keep the chicken house clean, the environment sanitary, reduce fecal pollution, and improve product quality.

Automated broiler breeding equipment

We design and supply automated broiler farming equipment, starting from the first day the chicks are born.

And throughout the entire growth cycle. The main equipment includes automatic drinking cups,

Poultry feeding systems, environmental control systems, lighting systems, manure cleaners, etc.

Cage size: perfectly matched to the number of birds (stocking density: 50kg/㎡).

Surface treatment: hot-dip galvanizing, the thickness of the galvanized layer is 275g, uniform, and has good anti-corrosion performance.

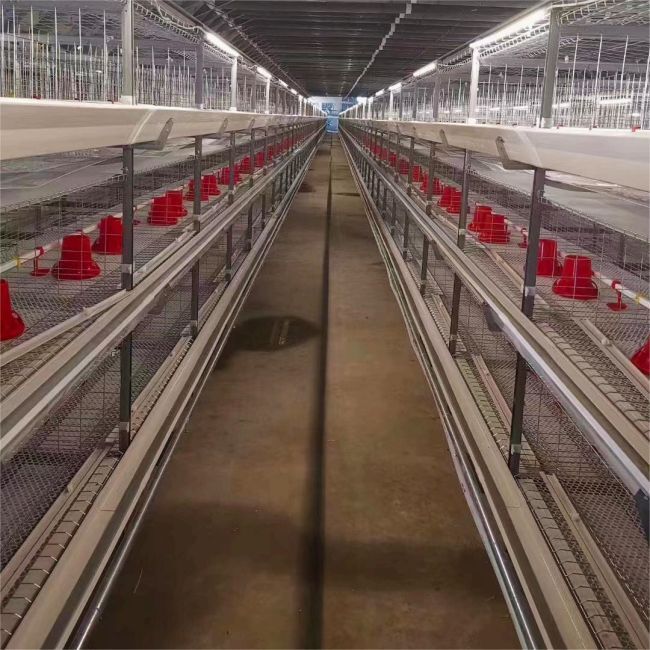

Feed silo: includes weighing device to record daily feed consumption. Feed pan feeding: height is

It can be adjusted to feed chickens of different ages.

This mechanism ensures even distribution of feed throughout the system.

A lifting system on each drinker allows the birds to drink at the correct height.

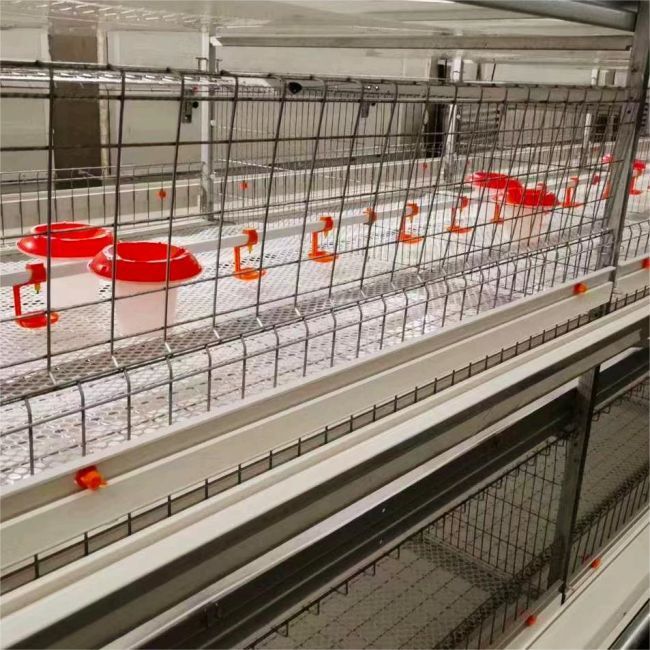

Each cage is equipped with a water supply pipe and a drinking fountain, and 360° nipple water supply.

Supplied with dosators, filters and pressure gauges.

The device is linked with the manure cleaning belt under each cage to automatically clean the manure.

By operating the control cabinet, the feces can be discharged to the outside. It can be opened or closed at the

same time.

Q1: I am interested in your poultry equipment.

What is the optimal price per unit?

A1: Please tell us the following basic information for reference so that we can recommend

The right choice and we will give you the right price accordingly:

(a) What are the dimensions of your chicken coop? The price is directly related to the size.

Because some parts are quoted by length and some are quoted by line.

(b) How many birds do you want to keep?

(c) Do you raise broiler chickens or laying hens?

Q2: My chicken coop has not been built yet, can you give us some advice?

A2: OK. Please build according to the plan.

If you have enough land, we can suggest a house size based on your preferences.

Q3: This is my first time importing, can you ship it?

Will the goods be shipped to my address?

A3: No problem. We can send the products to where you want.

Q4: I am concerned about the installation of poultry equipment.

Can you help me?

A4: Yes, we can. We will send the brochure and video for free for your reference.

We can also share instructions online; overseas installation teams are available for a fee.

Question 5: I plan to become a poultry farming equipment retailer

In the meantime, can you give me some support?

A5:Yes, we can. We will provide technical support to our agents for free. Discount price is also available based on quantity.
